Stored Procedure with SimpleJdbcCall in Spring

The SimpleJdbcCall was introduced in Spring 2.5. It’s goal is to make calling stored procedures as simple as possible. It tries to use JDBC meta-data as much as possible, and it allows the developers to override settings. Using any other class like “JdbcTemplate” or extending from “StoredProcedure” is considered “old school spring”.

The SimpleJdbcCall class can be used to call a stored procedure with IN and OUT parameters. You can use this approach while working with either of the RDBMS like Apache Derby, DB2, MySQL, Microsoft SQL Server, Oracle, and Sybase.

Step-1 : To understand the approach let us take our Student table which can be created in MySQL DAVDB database with the following DDL:
CREATE TABLE Employee(
   EMPID   INT NOT NULL AUTO_INCREMENT,
   NAME VARCHAR(20) NOT NULL,
   AGE  INT NOT NULL,
   SALARY BIGINT NOT NULL,
   PRIMARY KEY (ID)
);

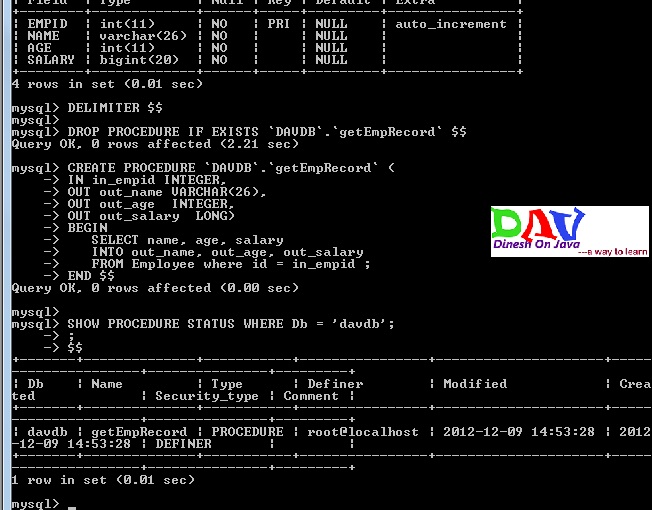

Step-2: Now, consider the following MySQL stored procedure which takes employee Id (empid) and returns corresponding employee's name, age and salary using OUT parameters. So let us create this stored procedure in your DAVDB database using MySQL command prompt:
DELIMITER $$

DROP PROCEDURE IF EXISTS `DAVDB`.`getEmpRecord` $$
CREATE PROCEDURE `DAVDB`.`getEmpRecord` (
IN in_empid INTEGER,
OUT out_name VARCHAR(26),
OUT out_age  INTEGER,
OUT out_salary  LONG)
BEGIN
   SELECT name, age, salary
   INTO out_name, out_age, out_salary
   FROM Employee where empid = in_empid ;
END $$

DELIMITER ;

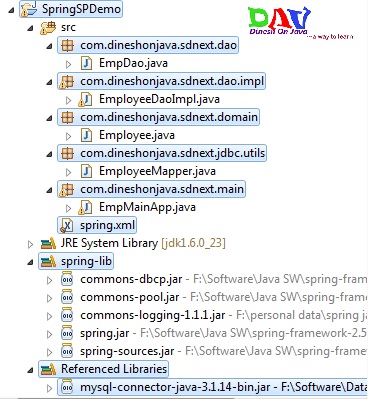

Step-3: Create Java Project "SpringSPDemo" and add the required spring library and mysql library as following.


 Step-4: Create DAO interface EmpDAO and list down all the required methods. Though it is not required and you can directly write EmployeeJDBCTemplate class, but as a good practice, let's do it.
package com.dineshonjava.sdnext.dao;

import java.util.List;

import com.dineshonjava.sdnext.domain.Employee;

/**
 * @author Dinesh Rajput
 *
 */
public interface EmpDao {

 /**
  * This is the method to be used to create
  * a record in the Employee table.
  */
 void create(String name, Integer age, Long salary);
 /**
  * This is the method to be used to list down
  * a record from the Employee table corresponding
  * to a passed Employee id.
  */
 Employee getEmployee(Integer empid);
 /**
  * This is the method to be used to list down
  * all the records from the Employee table.
  */
 List listEmployees();
 /**
  * This is the method to be used to delete
  * a record from the Employee table corresponding
  * to a passed Employee id.
  */
 void delete(Integer empid);
 /**
  * This is the method to be used to update
  * a record into the Employee table.
  */
 void update(Integer empid, Integer age);
}
Step-5: Create other required Java classes Employee, EmployeeMapper, EmployeeDaoImpl and EmpMainApp under the com.dineshonjava.sdnext.* package.
Employee.java
package com.dineshonjava.sdnext.domain;

/**
 * @author Dinesh Rajput
 *
 */
public class Employee {
 private int empid;
 private String name;
 private int age;
 private long salary;
 /**
  * @return the empid
  */
 public int getEmpid() {
  return empid;
 }
 /**
  * @param empid the empid to set
  */
 public void setEmpid(int empid) {
  this.empid = empid;
 }
 /**
  * @return the name
  */
 public String getName() {
  return name;
 }
 /**
  * @param name the name to set
  */
 public void setName(String name) {
  this.name = name;
 }
 /**
  * @return the age
  */
 public int getAge() {
  return age;
 }
 /**
  * @param age the age to set
  */
 public void setAge(int age) {
  this.age = age;
 }
 /**
  * @return the salary
  */
 public long getSalary() {
  return salary;
 }
 /**
  * @param salary the salary to set
  */
 public void setSalary(long salary) {
  this.salary = salary;
 }
 public String toString(){
  return "EMPLOYEE{empid- "+this.empid+" name- "+this.name+
    " age- "+this.age+" salary- "+this.salary+"}";
 }
}
EmployeeMapper.java
package com.dineshonjava.sdnext.jdbc.utils;

import java.sql.ResultSet;
import java.sql.SQLException;

import org.springframework.jdbc.core.RowMapper;

import com.dineshonjava.sdnext.domain.Employee;

/**
 * @author Dinesh Rajput
 *
 */
public class EmployeeMapper implements RowMapper {
 public Employee mapRow(ResultSet rs, int rowNum) throws SQLException {
  Employee employee = new Employee();
  employee.setEmpid(rs.getInt("empid"));
  employee.setName(rs.getString("name"));
  employee.setAge(rs.getInt("age"));
  employee.setSalary(rs.getLong("salary"));
  return employee;
 }
}
EmployeeDaoImpl.java
package com.dineshonjava.sdnext.dao.impl;

import java.util.List;
import java.util.Map;

import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.core.namedparam.MapSqlParameterSource;
import org.springframework.jdbc.core.namedparam.SqlParameterSource;
import org.springframework.jdbc.core.simple.SimpleJdbcCall;
import org.springframework.stereotype.Component;

import com.dineshonjava.sdnext.dao.EmpDao;
import com.dineshonjava.sdnext.domain.Employee;
import com.dineshonjava.sdnext.jdbc.utils.EmployeeMapper;

/**
 * @author Dinesh Rajput
 *
 */
@Component
public class EmployeeDaoImpl implements EmpDao {
 @Autowired
 private DataSource dataSource;
 @Autowired
 private JdbcTemplate jdbcTemplateObject;
 private SimpleJdbcCall simpleJdbcCall;

 @Override
 public void create(String name, Integer age, Long salary) {
  String SQL = "INSERT INTO Employee (name, age, salary) VALUES (?, ?, ?)";
  jdbcTemplateObject.update(SQL, new Object[]{name, age, salary} );
     System.out.println("Created Record Name = " + name + " Age = " + age+ " Salary = " + salary);
 }

 /**
  * @param jdbcTemplateObject the jdbcTemplateObject to set
  */
 public void setJdbcTemplateObject(JdbcTemplate jdbcTemplateObject) {
  this.jdbcTemplateObject = jdbcTemplateObject;
 }

 /**
  * @param dataSource the dataSource to set
  */
 @Autowired
 public void setDataSource(DataSource dataSource) {
  this.dataSource = dataSource;
  this.simpleJdbcCall = new SimpleJdbcCall(this.dataSource).withProcedureName("getEmpRecord");
 }

@Override
public Employee getEmployee(Integer empid) {
 SqlParameterSource in = new MapSqlParameterSource().addValue("in_empid", empid);
   Map out = simpleJdbcCall.execute(in);
   Employee employee = new Employee();
   employee.setEmpid(empid);
   employee.setName((String)out.get("out_name"));
   employee.setAge((Integer)out.get("out_age"));
   employee.setSalary(Long.valueOf((String)out.get("out_salary")));
   return employee;
}

 @Override
 public List listEmployees() {
  String SQL = "SELECT * FROM Employee";
  List employees = (List) jdbcTemplateObject.query(SQL, new EmployeeMapper());
     return employees;
 }

 @Override
 public void delete(Integer empid) {
  String SQL = "DELETE FROM Employee WHERE empid = ?";
  jdbcTemplateObject.update(SQL, new Object[]{empid});
  System.out.println("Deleted Record with EMPID = " + empid );
 }

 @Override
 public void update(Integer empid, Integer age) {
   String SQL = "UPDATE Employee SET age = ? WHERE empid = ?";
   jdbcTemplateObject.update(SQL, new Object[]{age, empid});
   System.out.println("Updated Record with EMPID = " + empid );
 }
}
EmpMainApp.java
package com.dineshonjava.sdnext.main;

import java.util.List;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import com.dineshonjava.sdnext.dao.EmpDao;
import com.dineshonjava.sdnext.domain.Employee;

/**
 * @author Dinesh Rajput
 *
 */
public class EmpMainApp {

 /**
  * @param args
  */
 public static void main(String[] args) {
  ApplicationContext context = new ClassPathXmlApplicationContext("spring.xml");
  EmpDao empDao = (EmpDao) context.getBean("employeeDaoImpl");

  System.out.println("------Records Creation--------" );
  empDao.create("Dinesh", 25, 50000l);
  empDao.create("Anamika", 23, 30000l);
  empDao.create("Nimmo", 24, 30020l);
  empDao.create("Adesh", 24, 30011l);
  empDao.create("Vinesh", 22, 20011l);

  System.out.println("------Listing Multiple Records--------" );
  List employees = empDao.listEmployees();
  for (Employee employee : employees) {
          System.out.print(employee);
     }

  System.out.println("----Updating Record with EMPID = 2 -----" );
  empDao.update(2, 20);

  System.out.println("----Listing Record with EMPID = 2 -----" );
  Employee employee = empDao.getEmployee(2);
  System.out.print(employee);
 }
}
Step-6: Create Beans configuration file Spring.xml under the src folder.
<beans xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p" xmlns:security="http://www.springframework.org/schema/security" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.springframework.org/schema/beans" xsi:schemalocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd
     http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security-2.0.4.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
  http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd">

<context:annotation-config></context:annotation-config>

<context:component-scan base-package="com.dineshonjava.sdnext.dao.impl">
</context:component-scan>

<bean class="org.apache.commons.dbcp.BasicDataSource" id="dataSource">
 <property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
 <property name="url" value="jdbc:mysql://localhost:3306/DAVDB"></property>
 <property name="username" value="root"></property>
 <property name="password" value="root"></property>
 <property name="initialSize" value="2"></property>
 <property name="maxActive" value="5"></property>
Once you are done with creating source and bean configuration files, let us run the application. If everything is fine with your application, this will print the following message:
Output:
Dec 9, 2012 4:10:43 PM org.springframework.context.support.AbstractApplicationContext prepareRefresh
INFO: Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@1027b4d: display name [org.springframework.context.support.ClassPathXmlApplicationContext@1027b4d]; startup date [Sun Dec 09 16:10:43 IST 2012]; root of context hierarchy
Dec 9, 2012 4:10:43 PM org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions
INFO: Loading XML bean definitions from class path resource [spring.xml]
Dec 9, 2012 4:10:43 PM org.springframework.context.support.AbstractApplicationContext obtainFreshBeanFactory
INFO: Bean factory for application context [org.springframework.context.support.ClassPathXmlApplicationContext@1027b4d]: org.springframework.beans.factory.support.DefaultListableBeanFactory@1e8a1f6
Dec 9, 2012 4:10:43 PM org.springframework.beans.factory.support.DefaultListableBeanFactory preInstantiateSingletons
INFO: Pre-instantiating singletons in org.springframework.beans.factory.support.DefaultListableBeanFactory@1e8a1f6: defining beans [org.springframework.context.annotation.internalRequiredAnnotationProcessor,org.springframework.context.annotation.internalAutowiredAnnotationProcessor,org.springframework.context.annotation.internalCommonAnnotationProcessor,employeeDaoImpl,dataSource,jdbcTemplateObject]; root of factory hierarchy
----Listing Record with EMPID = 2 -----
Dec 9, 2012 4:10:43 PM org.springframework.jdbc.core.JdbcTemplate extractReturnedResults
INFO: Added default SqlReturnUpdateCount parameter named #update-count-1
EMPLOYEE{empid- 2 name- Anamika age- 20 salary- 30000}
