JAX WS Hello World Example

In this tutorial we want to run a JAX-WS example (Endpoint + Client) for beginner of JAX-WS web service give the few minutes to this tutorial and happy learning ; ) .

Prerequisites:
  1. JDK 1.6
  2. Eclipse (or STS) IDE
Developing WebService End Point

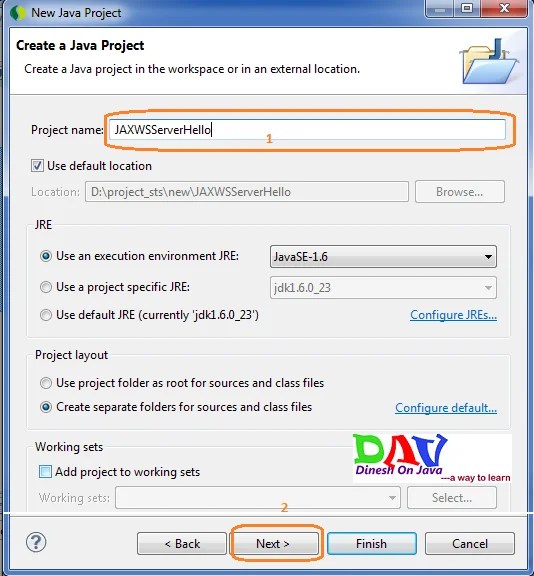

1) Open Eclipse (or STS), and create a java project "JAXWSServerHello".

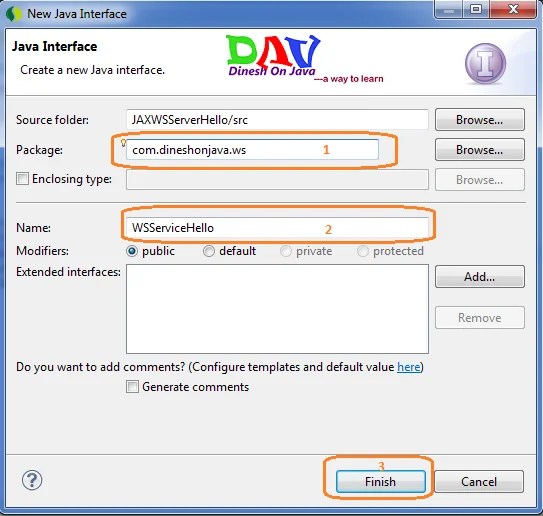

2) Create WSServiceHello Endpoint Interface:


WSServiceHello .java
package com.dineshonjava.ws;

import javax.jws.WebMethod;
import javax.jws.WebService;

/**
 * @author Dinesh Rajput
 *
 */
@WebService
public interface WSServiceHello {

 @WebMethod String sayHello(String name);

}

3) Create WSServiceHello Endpoint Implementation class:
WSServiceHello .java
package com.dineshonjava.ws;

import javax.jws.WebService;

/**
 * @author Dinesh Rajput
 *
 */
@WebService(endpointInterface="com.dineshonjava.ws.WSServiceHello")
public class WSServiceHelloImpl implements WSServiceHello {

 @Override
 public String sayHello(String name) {
  return  "Hello, Welcome to JAX-WS World and keep learning!! " + name;
 }

}

4) Create Endpoint Publisher class:
WSHelloPublisher.java
package com.dineshonjava.publisher;

import javax.xml.ws.Endpoint;

import com.dineshonjava.ws.WSServiceHelloImpl;

/**
 * @author Dinesh Rajput
 *
 */
public class WSHelloPublisher {

 public static void main(String[] args) {
  Endpoint.publish("http://localhost:8181/WS/WSServiceHello"
    ,new WSServiceHelloImpl());
 }

}
5) Run above program.Your web service is published.You can check your service wsdl at http://localhost:8181/WS/WSServiceHello?wsdl
WSServiceHello.wsdl

<?xml version="1.0" encoding="UTF-8"?>
<!-- Published by JAX-WS RI at http://jax-ws.dev.java.net. RI's version is JAX-WS RI 2.1.6 in JDK 6. -->
<!-- Generated by JAX-WS RI at http://jax-ws.dev.java.net. RI's version is JAX-WS RI 2.1.6 in JDK 6. -->
<definitions xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:tns="http://ws.dineshonjava.com/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="http://schemas.xmlsoap.org/wsdl/" targetNamespace="http://ws.dineshonjava.com/" name="WSServiceHelloImplService">
<types>
<xsd:schema>
<xsd:import namespace="http://ws.dineshonjava.com/" schemaLocation="http://localhost:8181/WS/WSServiceHello?xsd=1"/>
</xsd:schema>
</types>
<message name="sayHello">
<part name="parameters" element="tns:sayHello"/>
</message>
<message name="sayHelloResponse">
<part name="parameters" element="tns:sayHelloResponse"/>
</message>
<portType name="WSServiceHello">
<operation name="sayHello">
<input message="tns:sayHello"/>
<output message="tns:sayHelloResponse"/>
</operation>
</portType>
<binding name="WSServiceHelloImplPortBinding" type="tns:WSServiceHello">
<soap:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>
<operation name="sayHello">
<soap:operation soapAction=""/>
<input>
<soap:body use="literal"/>
</input>
<output>
<soap:body use="literal"/>
</output>
</operation>
</binding>
<service name="WSServiceHelloImplService">
<port name="WSServiceHelloImplPort" binding="tns:WSServiceHelloImplPortBinding">
<soap:address location="http://localhost:8181/WS/WSServiceHello"/>
</port>
</service>
</definitions>

Developing WebService Client :

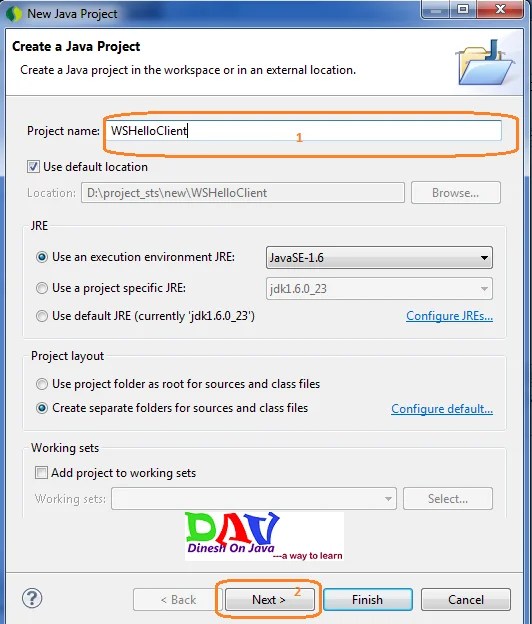

1) Open eclipse(or STS) and create a new java project "WSHelloClient"


2) As you know we need to generate the client stubs... but how?

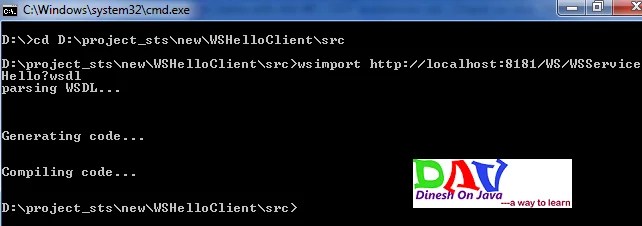

open your command line, and enter the wsimport command:
CD %CLIENT_PROJECT_HOME%\src
wsimport -keep http://localhost:8181/WS/WSServiceHello?wsdl

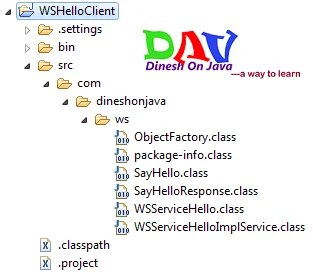

you will find java classes generated and compiled under src->com->dineshonjava->ws


3) Lets create client class now.
create WSHelloClient.java under src->com.dineshonjava.client
package com.dineshonjava.client;

import com.dineshonjava.ws.WSServiceHello;
import com.dineshonjava.ws.WSServiceHelloImplService;

/**
 * @author Dinesh Rajput
 *
 */
public class WSHelloClient {

 public static void main(String[] args) {
  WSServiceHelloImplService service = new WSServiceHelloImplService();
  WSServiceHello serviceHello = service.getWSServiceHelloImplPort();
  System.out.println("***************Call Started*******************");
  System.out.println(serviceHello.sayHello("Dinesh"));
  System.out.println("***************Call Ended*********************");
 }

}

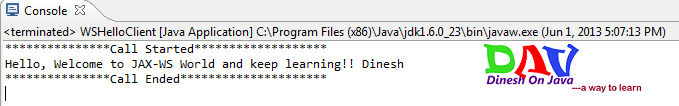

4) Run above program and you will get following output.


Congratulation, you have successfully created web service endpoint and client. Now in next post, we will deploy it on Tomcat.


Download Source Code
SourceCode.zip


References
Wikipedia for Web Service
